Alloy-49 Strip / CuNi44mn1 / CuNi40 / Constantan / Konstantan / Cuprothal 294 Strip / Foil

Детали продукта

Место происхождения: Шанхай

Фирменное наименование: TANKII

Сертификация: ROHS,ISO9001

Номер модели: КуНи44

Условия оплаты & доставки

Количество мин заказа: 20кг

Цена: usd+15~30+kg

Упаковывая детали: катышка, коробка, паллет

Время доставки: 8-20 дней

Условия оплаты: L/C, T/T, западное соединение

Поставка способности: 200+ТОН+МОНТХ

Получите самую лучшую цену
Свяжитесь сейчас
Спецификации
Самое интересное:
Материал:
Медный никель
Форма:
Круг
Размер:
0,01--10mm
Прочность на растяжение (N/mm2):
>420
Материал:
Медный никель
Форма:
Круг
Размер:
0,01--10mm
Прочность на растяжение (N/mm2):
>420
Описание
Alloy-49 Strip / CuNi44mn1 / CuNi40 / Constantan / Konstantan / Cuprothal 294 Strip / Foil
Product Description

Cuprothal 294/Alloy 294/MWS-294 copper nickel constantan wire CuNi44

Copper nickel resistance heating wire, which has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable. It's similar as s type cupronickel.

The more composition of Nickel,the more silver white the surface to be.



Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

Bar:10-50mm



Chemical Content(%) CuNi44

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
44 1.50% 0.5 - Bal - ND ND ND ND

Mechanical Properties CuNi44

Max Continuous Service Temp 400 ºC
Resistivity at 20ºC 0.49 ± 5% ohm*mm2/m
Density 8.9 g/cm3
Temperature Coefficient of Resistance < -6 ×10-6/ºC
EMF VS Cu (0~100ºC) -43 μV/ºC
Melting Point 1280 ºC
Tensile Strength Min 420 Mpa
Elongation Min 25%
Micrographic Structure Austenite
Magnetic Property

Non.





Copper nickel alloy series:

CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.

Also named NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050.



Cuprothal 294/Alloy 294/MWS-294 copper nickel constantan wire CuNi44

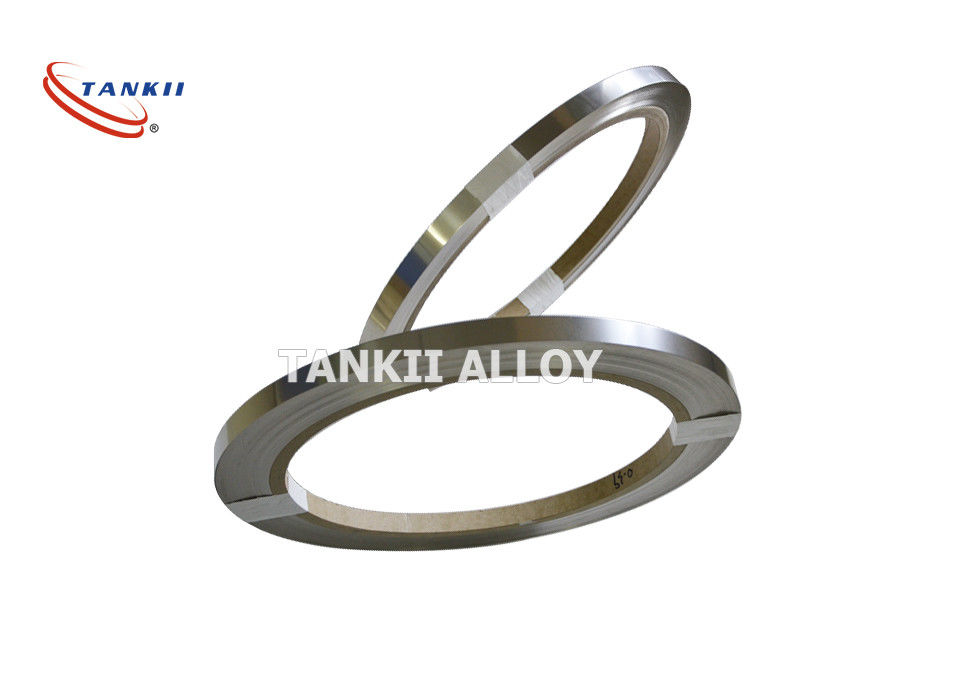

Alloy-49 Strip / CuNi44mn1 / CuNi40 / Constantan / Konstantan / Cuprothal 294 Strip / Foil 1Alloy-49 Strip / CuNi44mn1 / CuNi40 / Constantan / Konstantan / Cuprothal 294 Strip / Foil 2Alloy-49 Strip / CuNi44mn1 / CuNi40 / Constantan / Konstantan / Cuprothal 294 Strip / Foil 3
